Ibanez
BTB747
BassSuperstrat
No ratings yet

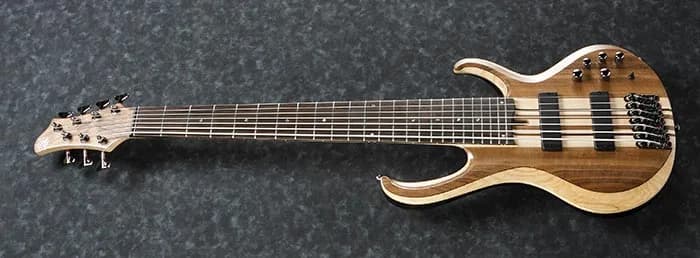

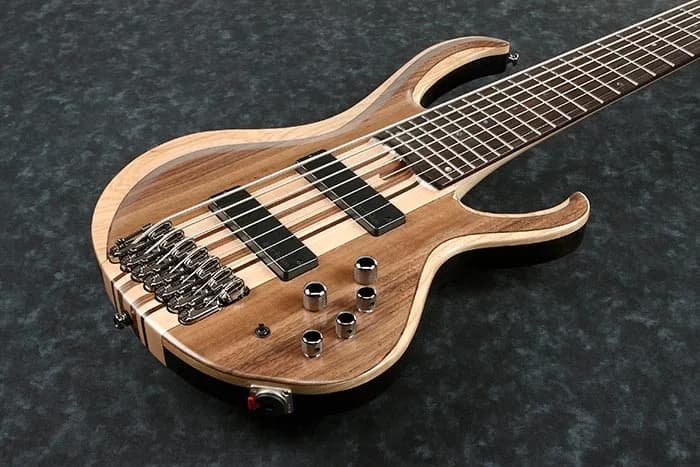

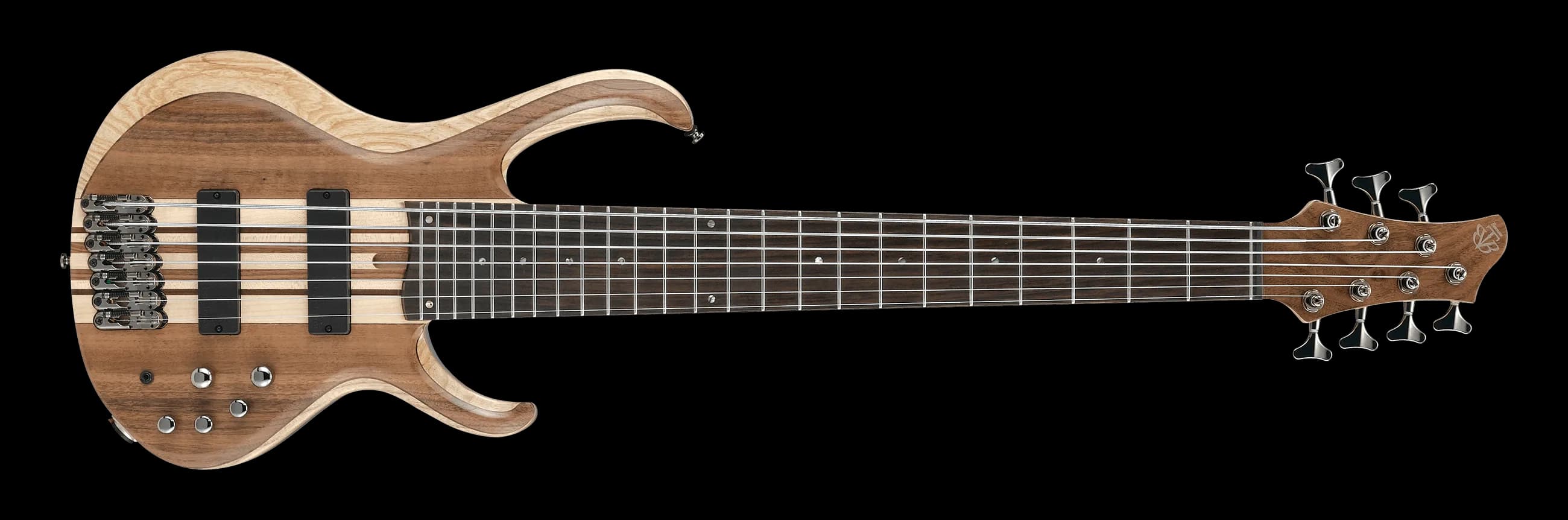

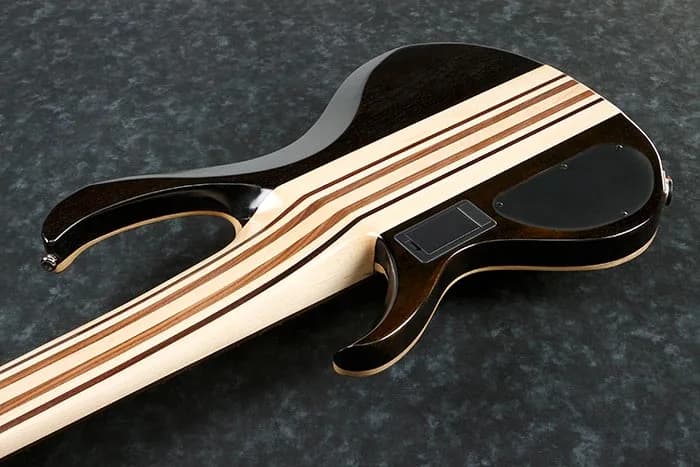

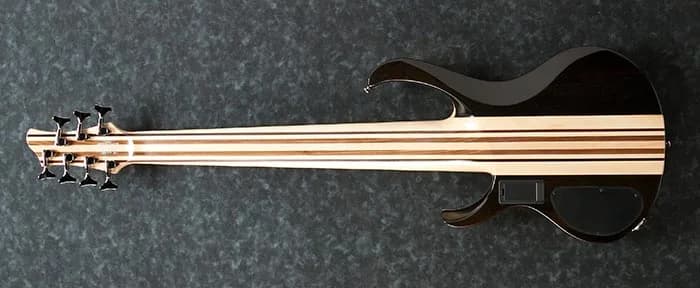

7-string bass with a walnut top over ash/okoume wing body, maple neck, and rosewood fingerboard, using active Bartolini BH2 pickups for extended-range clarity.
Best for
Progressive MetalFusionDjentMetal
Score
estimated from specs & owner reviews65
Overall / 100
Playability
67
Sound
68
Build
61
Value
65
Compare head-to-head
Line up the BTB747 against another model — scores, specs, and a verdict, side by side.
Compare with a specific model
Specifications
Suggest an edit| Brand | Ibanez |
|---|---|
| Type | Bass |
| Body wood | Walnut topAsh/Okoume wing |
| Neck wood | Maple |
| Fretboard | Rosewood |
| Strings | 7 |
| Frets | 24 |
| Scale length | 35" |
| Pickups | Bartolini® BH2 / Bartolini® BH2 |
| A Width | 63mm at NUT |
| Bridge | MR5 bridge |
| Bridge pickup | Bartolini® BH2 bridge pickupPassive |
| B Width | 96mm at 24F |
| C Thickness | 21mm at 1F |
| D Thickness | 24mm at 12F |
| Equalizer | Ibanez Custom Electronics 3-band EQ w/ 3-way Mid frequency switch |
| Factory Tuning | 1F,2C,3G,4D,5A,6E,7B |
| Fret | Medium Stainless Steel frets |
| Hardware | Cosmo black |
| Neck pickup | Bartolini® BH2 neck pickupPassive |
| Neck Type | BTB79pc Maple/Panga Panga/Walnut w/Graphite reinforcement rodsNeck-through |
| Radius | 950mmR |
| Recommended Bag | IBB540-BK |
| Recommended Case | MRB350C |
| String Gauge | .020p/.032/.045/.065/.080/.100/.130 |
| String Space | 15.5mm |
| Top Back Body | Walnut topAsh/Okoume wing body |
