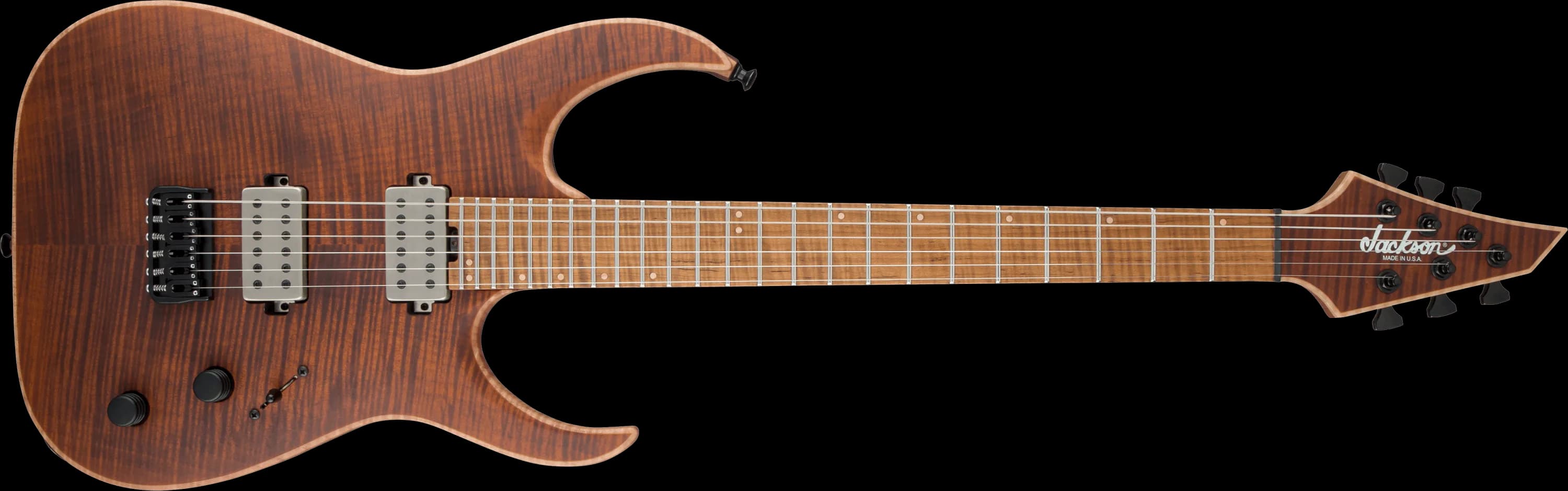

USA Signature Misha Mansoor Juggernaut HT6FM
Misha Mansoor is acclaimed for his masterful guitar work in fashioning the progressive metal of Periphery, and Jackson is proud to have collaborated so closely with the esteemed Djent forefather and speed demon on the USA Signature Misha Mansoor Juggernaut HT6FM, a model sure to impress the most discerning guitarists. This unique instrument is sculpted with a distinctive Jackson body shape inspired by the Dinky,™ with sleekly scalloped horns and a comfortably contoured neck heel. Its caramelized mahogany body with flame maple top and masked-off natural binding is matched with a graphite-reinforced bolt-on caramelized quartersawn maple neck with a hand-rubbed urethane gel back finish. The 20"-radius caramelized flame maple fingerboard features comfortably rolled edges, 24 jumbo stainless steel frets and offset maple dot inlays. A heel-mount truss rod adjustment wheel allows for quick and easy neck tweaks, even between songs in a set. The guitar's tonally versatile sound comes from Mansoor's dual Bare Knuckle Juggernaut humbucking pickups with brushed chrome covers, five-way switching, single volume control knob and a push-pull (on/off) tone knob. Other premium features include a matching Jackson reverse 3x3 AT1 headstock with three Hipshot® open-gear locking tuners on each side and a fixed Hipshot hardtail bridge, Dunlop® dual-locking strap buttons and more. Loaded with stage presence, the Juggernaut is available in two gorgeous finishes - either Satin Amber Tiger Eye or Satin Laguna Burst with black hardware and comes with a hardshell case, a set of D'Addario® strings, pick-tin and Bulb strap.
Score
estimated from specs & owner reviewsCompare head-to-head
Line up the USA Signature Misha Mansoor Juggernaut HT6FM against another model — scores, specs, and a verdict, side by side.
- vsM-II Ctm Fr Black Aqua C-Burst
- vsE-II SN-III Ht Tiger Eye Sunburst
- vsPeter Frampton "Phenix" Inspired Les Paul Custom VOS, Ebony
- vsMaverick Andromeda
Specifications
Suggest an edit| Brand | Jackson |
|---|---|
| Type | Electric |
| Body wood | Caramelized Mahogany |
| Neck wood | Caramelized Quartersawn Maple |
| Fretboard | Caramelized Flame Maple |
| Strings | 6 |
| Frets | 24 |
| Scale length | 25.5" |
| Pickups | Bare Knuckle Juggernaut / Bare Knuckle Juggernaut |
| Body Binding | Masked off Natural Flame Maple Binding |
| Body Finish | Satin |
| Body shape | Juggernaut |
| Body Top | Flame Maple |
| Bridge | Hipshot® 6 - Fixed .175 |
| Bridge pickup | Bare Knuckle Juggernaut |
| Commodity Code | 9207901000 |
| Construction | Bolt-On with Graphite Reinforcement and Scarf Joint |
| Control Knobs | Hipshot® O-ring |
| Controls | Volume, Tone (with Push/Pull Select Feature) |
| Finish | Satin Amber Tiger Eye |
| Fretboard radius | 20" (508 mm) |
| Fret Size | Jumbo Stainless |
| Hardware Finish | Black |
| Headstock | Reverse Jackson® AT-1 3x3 (3 Over/3 Under) |
| Included Accessories | Strings, Pick-tin, Bulb strap |
| Neck Binding | None |
| Neck Finish | Hand-Rubbed Urethane |
| Neck pickup | Bare Knuckle Juggernaut |
| Neck Plate | 4-Bolt (recessed screws) |
| Nut | Graph Tech TUSQ XL |
| Nut width | 1.6875" (42.86 mm) |
| Orientation | Right-Hand |
| Pickguard | None |
| Pickup Covers | Brushed Chrome |
| Position Inlays | Offset Maple Dot |
| Product Name | USA Signature Misha Mansoor Juggernaut HT6FM, Caramelized Flame Maple Fingerboard, Satin Amber Tiger Eye |
| Saddle Height Wrench | Yes |
| Series | Artist Signature |
| Strap Buttons | Dunlop® Dual-Locking |
| String Nut | Graph Tech TUSQ XL |
| Switching | 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Two Inside Single Coils, Position 3. Both Full Humbucking Pickups, Position 4. Outer Neck Single Coil, Position 5. Full Neck Pickup |
| Switch Tip | Black |
| Truss rod | Dual-Action |
| Truss Rod Nut | Heel-Mount Truss Rod Adjustment Wheel |
| Tuners | Hipshot® Open-Gear Locking |
| Street price | $5,350 |
