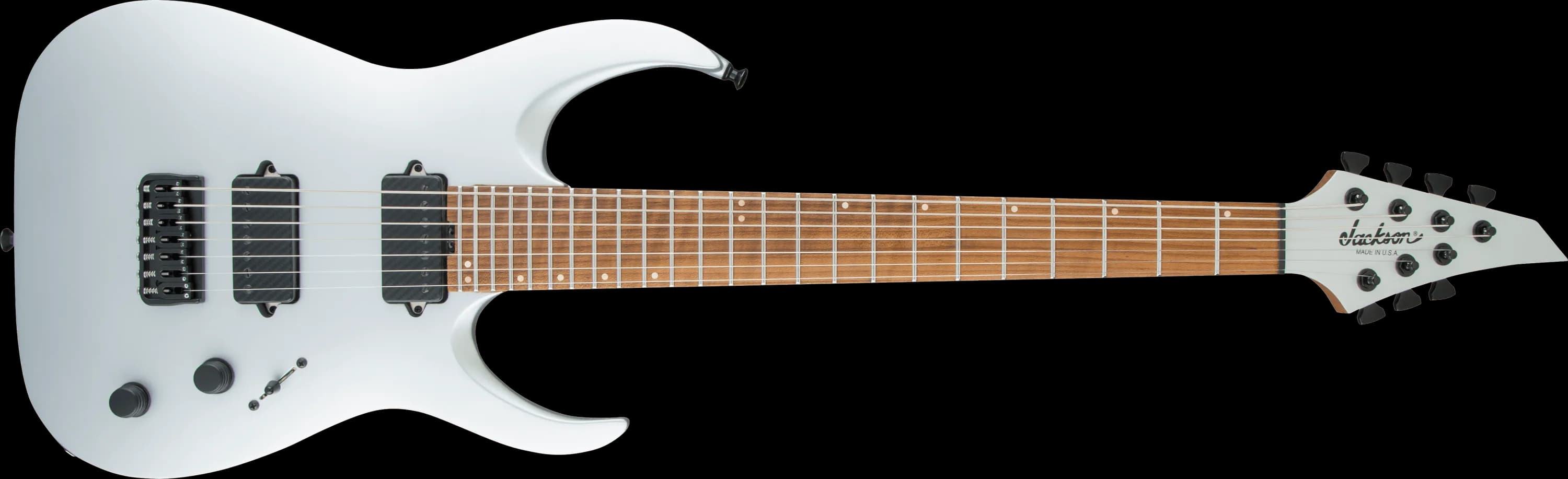

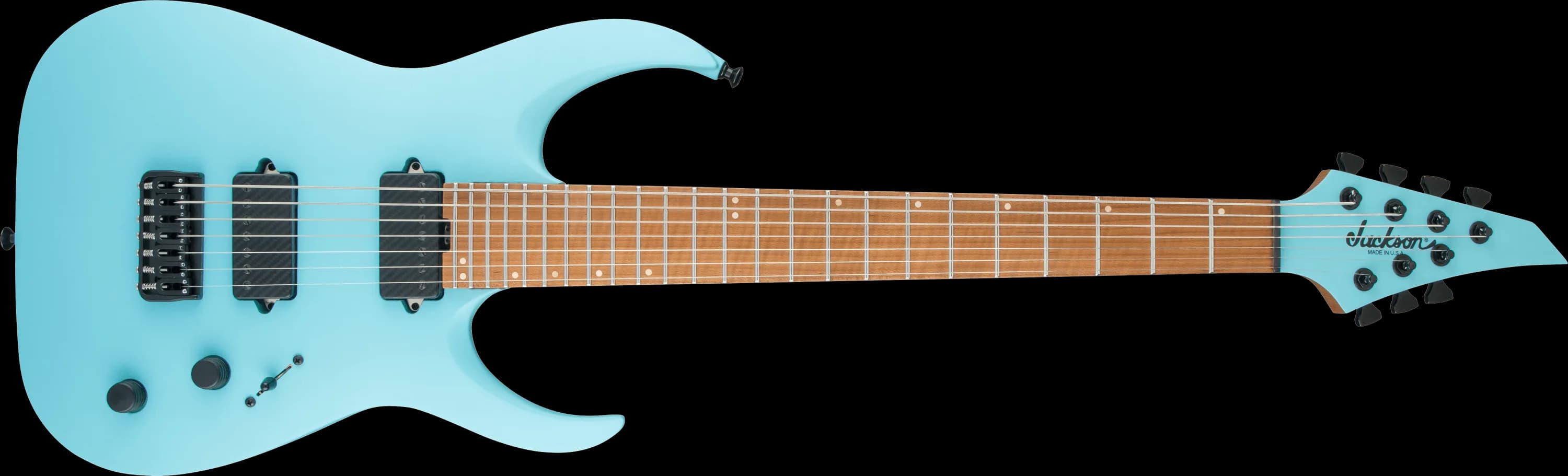

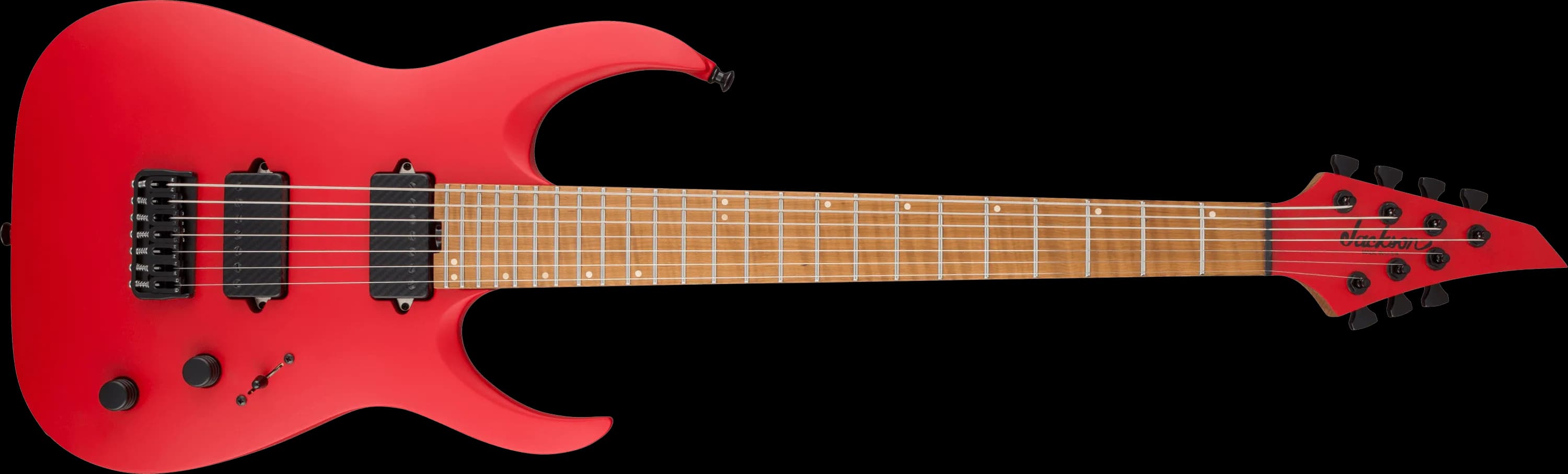

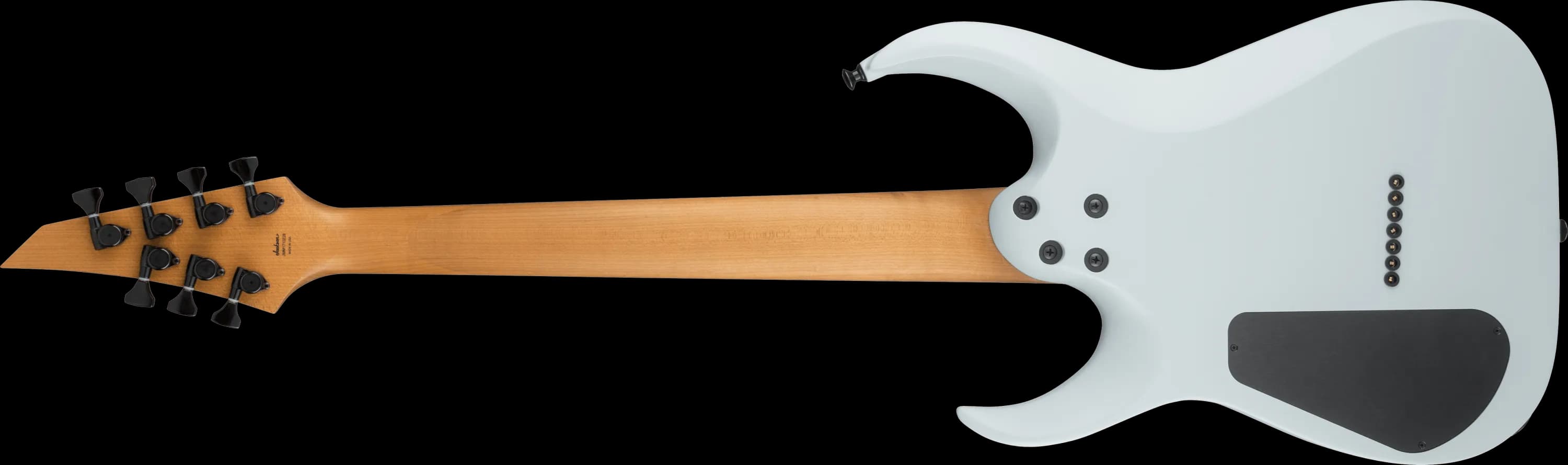

USA Signature Misha Mansoor Juggernaut HT7
Misha Mansoor is acclaimed for his masterful guitar work in fashioning the progressive metal of Periphery, and Jackson is proud to have collaborated so closely with the esteemed Djent forefather and speed demon on the USA Signature Misha Mansoor Juggernaut HT7, a model sure to impress the most discerning guitarists. This unique 7-string instrument is sculpted with a distinctive Jackson body shape inspired by the Dinky,™ with sleekly scalloped horns and a comfortably contoured neck heel. A caramelized basswood body is paired with a graphite-reinforced bolt-on quartersawn maple neck, shaped with Mansoor's own custom profile with a hand-rubbed urethane gel back finish. The 20"-radius caramelized flame maple fingerboard features comfortably rolled edges, 24 jumbo stainless steel frets and offset maple dot inlays. A heel-mount truss rod adjustment wheel allows for quick and easy neck tweaks, even between songs in a set. The guitar's tonally versatile sound comes from Mansoor's dual Bare Knuckle Ragnarok humbucking pickups with laser etched carbon fiber covers, five-way switching, single volume control knob and a push-pull (on/off) tone knob. Other premium features include a matching Jackson 4x3 AT1 headstock with Hipshot® open-gear locking tuners and a fixed Hipshot hardtail bridge, Dunlop® dual-locking strap buttons and more. Designed to own the stage, the Juggernaut is available in three stunning finishes - Satin Daphne Blue, Satin Red or Satin Silver with black hardware. This signature instrument also comes with a hardshell case, a set of D'Addario® strings, pick-tin and Bulb strap.
Score
estimated from specs & owner reviewsCompare head-to-head
Line up the USA Signature Misha Mansoor Juggernaut HT7 against another model — scores, specs, and a verdict, side by side.
- vsM-II Ctm Fr Black Aqua C-Burst
- vsE-II SN-III Ht Tiger Eye Sunburst
- vsPeter Frampton "Phenix" Inspired Les Paul Custom VOS, Ebony
- vsMaverick Andromeda
Specifications
Suggest an edit| Brand | Jackson |
|---|---|
| Type | Electric |
| Body wood | Caramelized Basswood |
| Neck wood | Caramelized Quartersawn Maple |
| Fretboard | Caramelized Flame Maple |
| Strings | 7 |
| Frets | 24 |
| Scale length | 26.5" |
| Pickups | Bare Knuckle Ragnarok / Bare Knuckle Ragnarok |
| Body Finish | Satin |
| Body shape | Juggernaut |
| Bridge | Hipshot® 7 - Fixed .175 |
| Bridge pickup | Bare Knuckle Ragnarok |
| Commodity Code | 9207901000 |
| Construction | Bolt-On with Graphite Reinforcement and Scarf Joint |
| Control Knobs | Hipshot® O-ring |
| Controls | Volume, Tone (with Push/Pull Select Feature) |
| Finish | Satin Silver |
| Fretboard radius | 20" (508 mm) |
| Fret Size | Jumbo Stainless |
| Hardware Finish | Black |
| Headstock | Jackson® AT-1 4x3 (4 Over/3 Under) |
| Included Accessories | Strings, Pick-tin, Bulb strap |
| Neck Binding | None |
| Neck Finish | Hand-Rubbed Urethane |
| Neck pickup | Bare Knuckle Ragnarok |
| Neck Plate | 4-Bolt (recessed screws) |
| Nut | Graph Tech TUSQ XL |
| Nut width | 1.75" (44.45 mm) |
| Orientation | Right-Hand |
| Pickguard | None |
| Pickup Covers | Covered Carbon Fiber (Laser Etched) |
| Position Inlays | Offset Maple Dot |
| Product Name | USA Signature Misha Mansoor Juggernaut HT7, Caramelized Flame Maple Fingerboard, Satin Silver |
| Saddle Height Wrench | Yes |
| Series | Artist Signature |
| Strap Buttons | Dunlop® Dual-Locking |
| String Nut | Graph Tech TUSQ XL |
| Switching | 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Two Inside Coils, Position 3. Both Full Humbucking Pickups, Position 4. Two Outer Coils, Position 5. Full Neck Pickup |
| Switch Tip | Black |
| Truss rod | Dual-Action |
| Truss Rod Nut | Heel-Mount Truss Rod Adjustment Wheel |
| Tuners | Hipshot® Open-Gear Locking |
| Street price | $5,350 |
