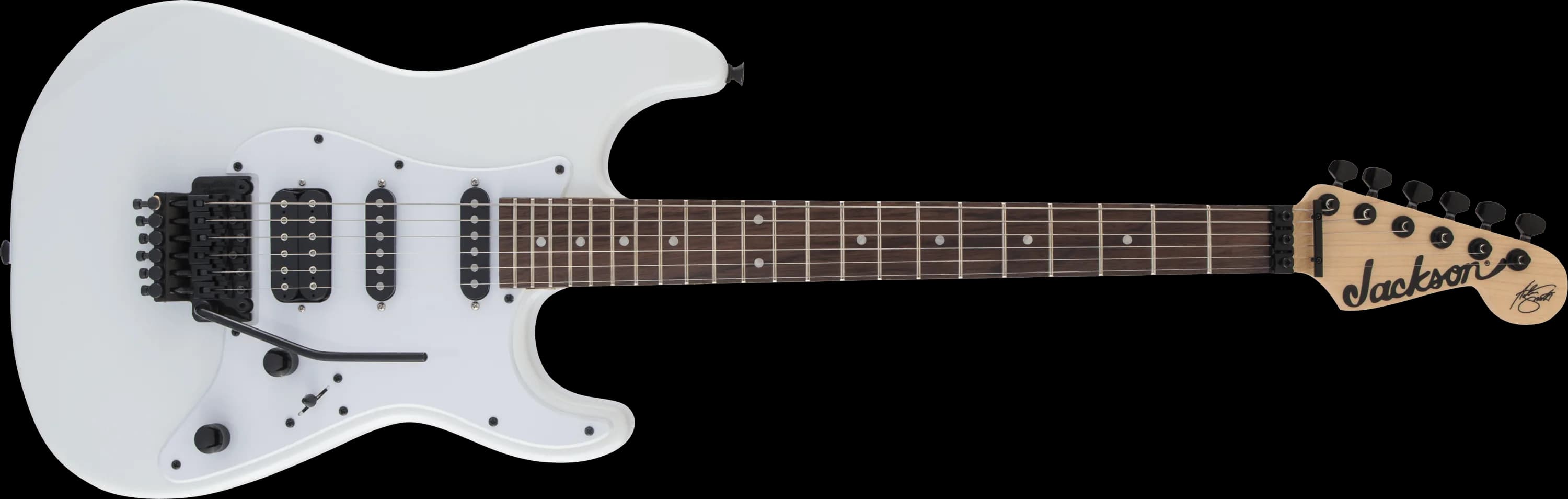

X Series Signature Adrian Smith SDX
Iron Maiden is one of the most successful and influential metal bands ever, thanks to the molten yet melodic guitar work of Adrian Smith. With timeless songwriting and thrilling live performances, Maiden continues to record, tour internationally and rock stadiums everywhere with electricity. The affordable X Series Signature Adrian Smith SDX features a poplar body, bolt-on maple neck, compound-radius rosewood or maple fingerboard, HSS configuration (high-output Jackson bridge pickup, Jackson standard middle and neck single-coil pickups), white pickguard (laurel fingerboard model) or black pickguard (maple fingerboard model), five-way blade selector switch, Jackson tuners, Floyd Rose® Special tremolo system and black hardware.
Score
estimated from specs & owner reviewsCompare head-to-head
Line up the X Series Signature Adrian Smith SDX against another model — scores, specs, and a verdict, side by side.
Specifications
Suggest an edit| Brand | Jackson |
|---|---|
| Type | Electric |
| Body wood | Poplar |
| Neck wood | Maple |
| Fretboard | Laurel |
| Strings | 6 |
| Frets | 22 |
| Scale length | 25.5" |
| Pickups | Jackson® Single-Coil / Jackson® Single-Coil / Jackson® High-Output Humbucking |
| Body Finish | Gloss |
| Body shape | San Dimas® |
| Bridge | Floyd Rose® Special Double-Locking Tremolo |
| Bridge pickup | Jackson® High-Output Humbucking |
| Commodity Code | 9207.90.0040 |
| Construction | Bolt-On with Graphite Reinforcement |
| Control Knobs | Dome-Style |
| Controls | Volume, Tone |
| Finish | Snow White |
| Fretboard radius | 12"-16" Compound Radius (304.8 mm to 406.4 mm) |
| Fret Size | Jumbo |
| Hardware Finish | Black |
| Headstock | Licensed Fender® Stratocaster® |
| Middle pickup | Jackson® Single-Coil |
| Neck Finish | Satin Urethane |
| Neck pickup | Jackson® Single-Coil |
| Neck Plate | Jackson® |
| Nut | Floyd Rose® Locking |
| Nut width | 1.6875" (42.86 mm) |
| Orientation | Right-Hand |
| Pickguard | 1-Ply White |
| Position Inlays | White Dot |
| Product Name | X Series Signature Adrian Smith SDX, Laurel Fingerboard, Snow White |
| Series | Artist Signature |
| Strap Buttons | Standard |
| String Nut | Floyd Rose® Locking |
| Switching | 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup |
| Switch Tip | Black |
| Tremolo Arm | Floyd Rose® Special Locking |
| Truss rod | Dual-Action |
| Truss Rod Nut | Vintage-Style Butt Adjust |
| Truss Rod Wrench | Yes |
| Tuners | Jackson® Sealed Die-Cast |
| Street price | $600 |
